LED modules are great alternatives for decorative lighting. They replace the florescent tubes in signboards and are easy to install. Two types of LED modules are offered, one with four pieces of LEDs and the other with three, both in natural white (5800K). The LED modules come in a package of 20 pieces, each with either 3 or 4 SMD LEDs, connected together by wires allowing for many designs and arrangements. They are also easily mounted onto various surfaces because they come with 3M tape in the back as well as small holes on the sides to be affixed using screws.



Applications:
Some examples of where LED modules come in handy are sign boards, channel letters, cove lighting as well as under cabinet lighting.



Product Information:

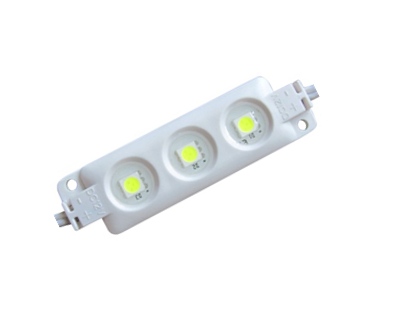

0.5 Watts
Model name GT-206-1-17W-B
LEDs 3 LEDs SMD 5050
Luminous Efficacy   79LM/W
Viewing Angle 120 Degrees
Volts 12V DC
Watts 0.5 Watts
Color White 6000K
Waterproof IP 65
Certification c ETL us Listed
Dimensions 68.2*19.5*5.7 mm

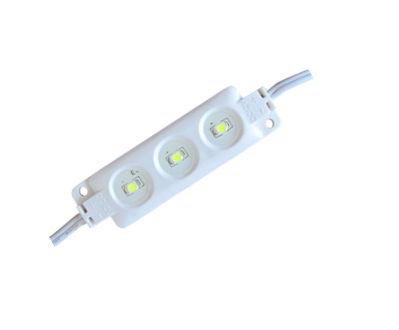

0.3 Watts
Model name GT-206-1-17W-B
LEDs 3 LEDs SMD 3528
Luminous Efficacy   75LM/W
Viewing Angle 120 Degrees
Volts 12V DC
Watts 0.3 Watts
Color White 6000K
Waterproof IP 65
Certification c ETL us Listed
Dimensions 68.2*19.5*5.7 mm
