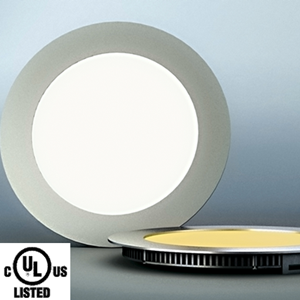

LED Panel Light R24

LED Panel Light 1×1
LED Panel Light R18

LED Panel Lights work beautifully in any setting. They come in 3 color temperatures to better enhance the atmosphere of any workspace. Because LED Panel Lighting is offered in various sizes, they are suitable for both commercial and residential purposes.



Office/Work Space
Walkway Lighting
Decorative Lighting


Dimension Ø240*12.55
LED Driver Input 100-240VAC, 50/60Hz
LED Panel Input 700mA/18~24VDC
Driver Model Mean Well APC-16-700
LED Power 14W
Fixture Power 16W
Lumen Output 1000~1200lm @ 3000K, 1200~1400lm @ 4000, 5700K
CCT 3000K ± 300K, 4000 ± 300K, 5700 ± 300K
LED Light Source SAMSUNG LED SMD5630
CRI Ra ≥ 80
Power Factor 0.5-0.6
Certification cUL Listed
Dimmable Function NA

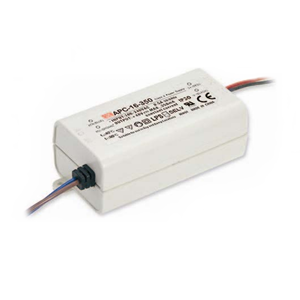

 R24 LED Panel  Driver


Instruction Manual:

  • Before installing the lighting fixtures, please read this instruction manual carefully.
  • The lighting fixtures should be installed, connected and tested by a certified installer based on regulations.
  • Lamps should always be installed or replaced with care.
  • Do not use over rated lamp.
  • Relamping only can be done when the power is off and the lamp is completely cooled down.
  • When a lamp is to be cleaned, switch off the fixture and let it cool down completely. Clean the fixture with a soft cloth and a standard PH neutral detergent. Stainless steel finishing should be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
  • Warning notice: the luminaries shall, under no circumstance, be covered by insulating matting material.


Step 1:

LED Panel Light R24


Step 2:

  1. Cut a hole in the ceiling that is the right size for the panel.

LED Panel Light R24


  1. Switch off the AC power.
  2. Fix the LED driver onto the back of the panel using the screws provided.
  3. Insert the AC power conduit into the driver box through the hole on the side of the driver box, and fix the AC power conduit tightly through the hole using suitable wire clamp matching the size of the conduit.
  4. Connect the DC wires of the LED panel from the back cover to the LED driver DC output end using the connectors provided. Then, connect the AC power cord to the driver AC input end and the ground wire on the back of the panel using the connectors provided. Make sure all connections are firm and correct.

Step 3:

LED Panel Light R24


  1. After connecting the DC and AC wires, cover the driver with the box and fix the driver box onto the screw holes at the back of the panel using the screws provided.

Step 4:

LED Panel Light R24


  1. Install the fixture onto the ceiling and secure the fixture using the spring provided.
  2. Adjust the position of the fixture properly and clean the surface of the panel if required.
  3. After proper installation of the fixture, switch on the AC power to turn on the panel light.
